Leader en instruments chirurgicaux motorisés

in_Name

deSoutter Medical

MBQ-707 series

Informations techniques

Handpiece

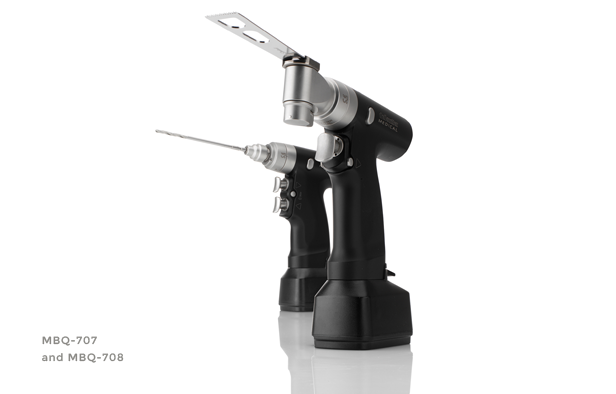

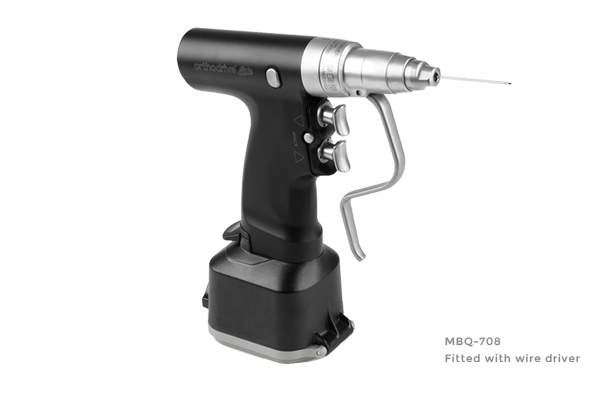

Single trigger (MBQ-707) or dual trigger (MBQ-708)

Drilling Speed: 0 - 1,350 rpm

Reaming Speed: 0 - 330 rpm

Max reaming torque: 15 Nm
Cannulation diameter: 4.4 mm

Dedicated Attachments: 10 options

Total attachment numbers when combined with final drive adaptors: 17 attachments

Power Options

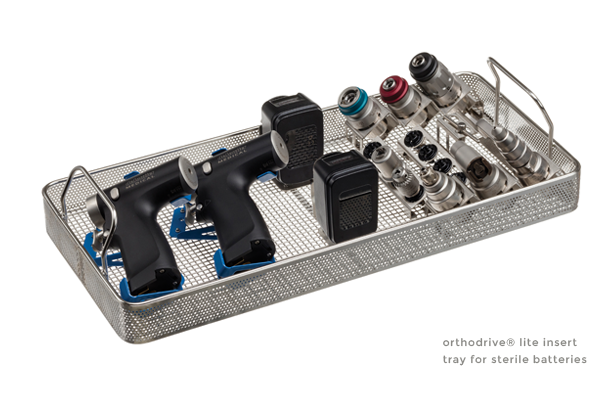

Sterile Li-Ion battery

Aseptic battery

Corded direct power

Galerie d'images

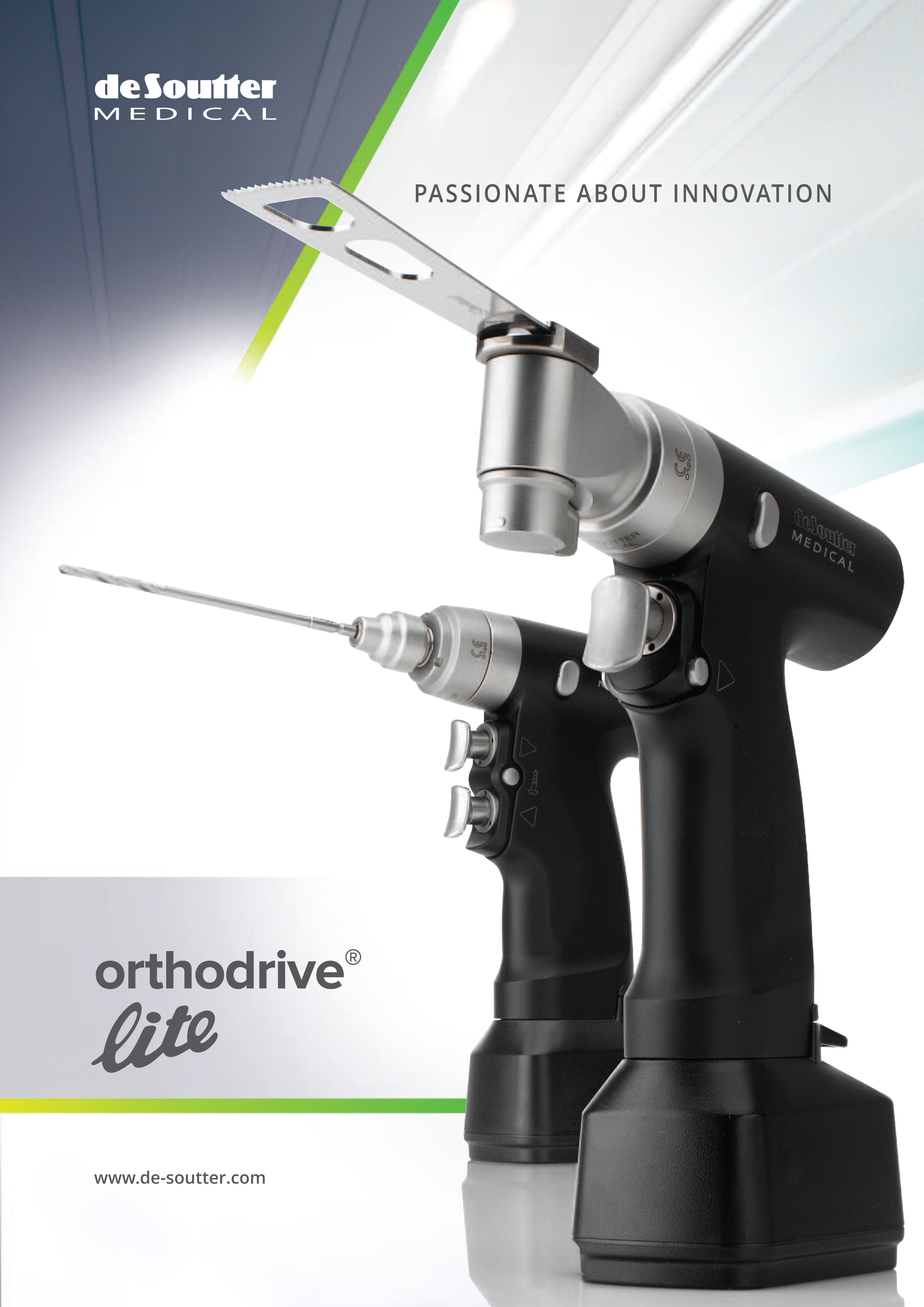

Télécharger le catalogue

Download Product Catalogue

Formulaire

MBQ-707 series

Small AO/Synthes

Introduction

The orthodrive® lite system is the latest innovation from De Soutter Medical. The lightest, most innovative and flexible large bone powered instrument yet.

Features

Lightest large bone system on the market

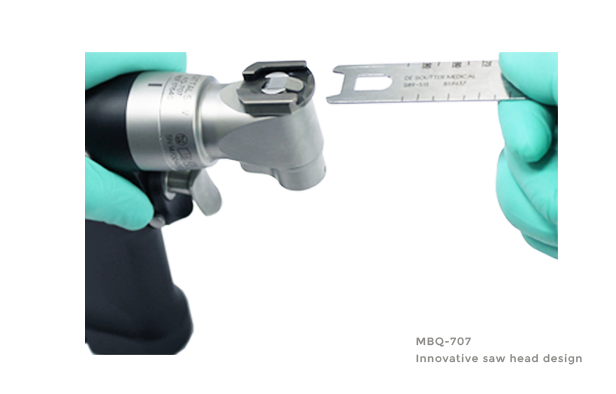

Innovative 'Zero play' blade mounting mechanism eliminates unwanted vibration and noise.
Simple blade loading
Effortless attachment assembly, simply 'push and click' and you are ready to go.
Suitable for both large bone and trauma procedures
Total system flexibility - completely compatible with existing De Soutter Medical 700 series systems

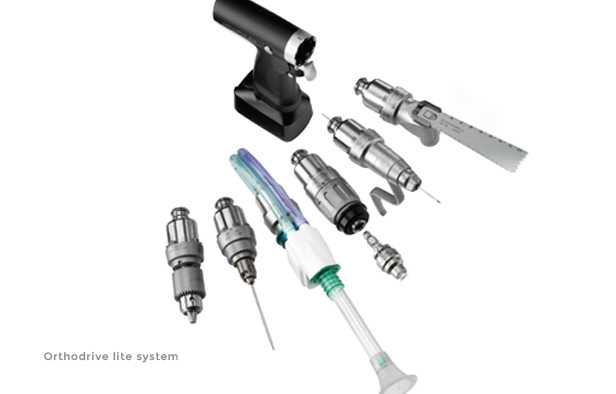

Attachments

Effortless attachment assembly. Simply 'push and click' and you are ready to go.
A wide range of attachments are available, all final drive adaptors are fully compatible with the 700 Series orthodrive® range providing total system versatility.
With such a versatile system cost can be removed without compromising performance or long term reliability.
