Informations techniques

Handpiece

Oscillating speed: 14,000 (or 16,000) cpm

Voltage: 230 (or 120) Vac

Weight: 1,300g

Sound level: 70 dB(A)

Length: 333 mm

Extractor

Motor power (max): 1 kW

Supply voltage: 240 or 100 - 120 Vac

Supply frequency: 50 - 60 Hz

Suction: 2,500 water gauge mm

Filtration: 99.997% > 0.5 microns

Dust bag capacity: 7.5 litres

Sound level: 58 dB(A)

Galerie d'images

Introduction

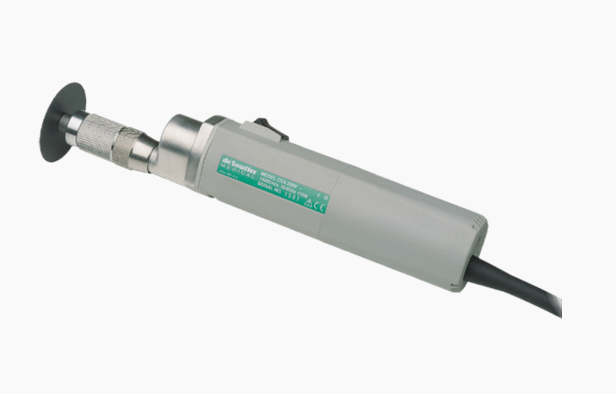

The CC4 cast saw with its powerful 110 watt motor maintains rapid and efficient cutting on the thickest of body casts.

Features

Features

The knurled grip close to the cast saw blade provides the operator with excellent control and flexibility of movement

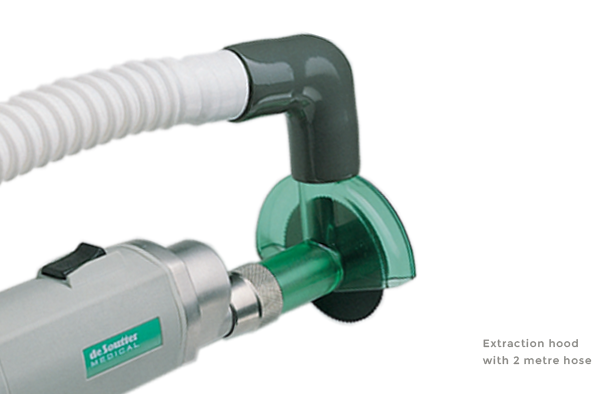

An optional clear extraction hood ensures good visibility when cutting. The hood is fully rotatable to suit the most convenient cutting position

Extractor

Extractor

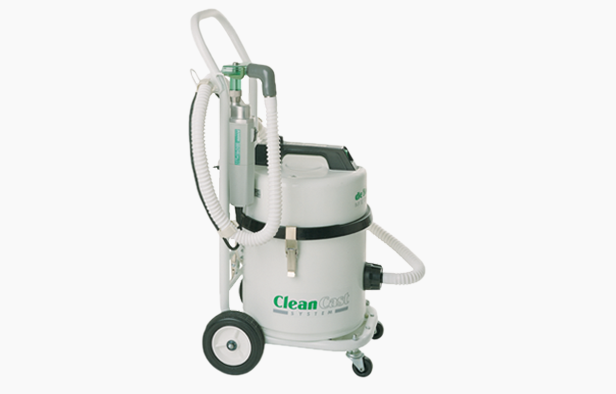

The CleanCast™ extractor has a four stage filtration system consisting of an easy to change synthetic collection bag, two cloth filters and a micro filter
The Hepa-flo microfilter retains 99.997% of all dust particles greater than 0.5 microns, providing a safe working environment for all.
The suction rate can be switched between powerful ‘high’ and quiet ‘low’ setting to suit operator and patient convenience
