Technical Information

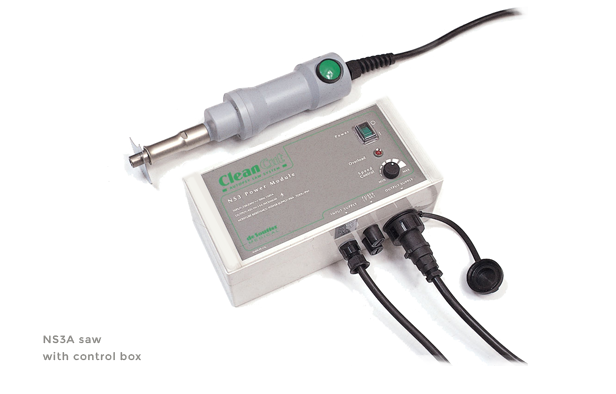

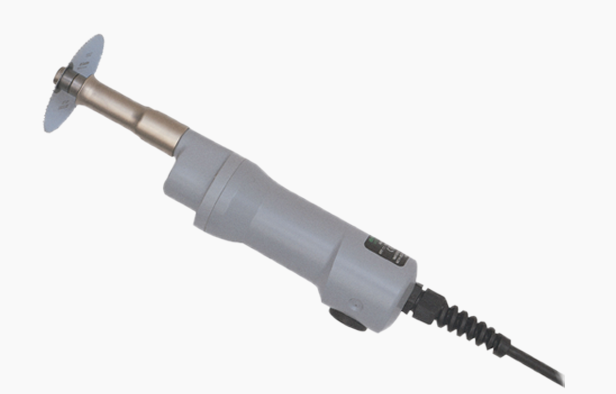

Handpiece
Oscillating speed: 0 - 14,000 cpm
Voltage: 42 Vdc
Cable length: 4 metres
Length: 275 mm
Weight: 1.15 kg
Sound level: 70 dB(A)

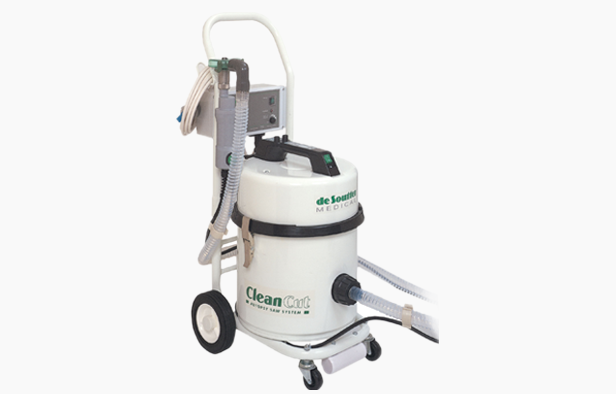

Extractor
Motor power (max): 1 kW
Supply voltage: 120 or 230 Vac
Supply frequency: 50 - 60 Hz
Suction: 2,500 water gauge mm
Filtration: 99.997% > 0.5 microns
Debris bag capacity: 7.5 litres
Sound level: 58 dB(A)



Image Gallery




Download Product Catalogue

Download Product Catalogue


Enquiry Form


Name*

Organisation/Employer Name*

Email Address*

Address

Telephone Number

Best time to call

Information required

Submit
Add me to the De Soutter mailing list for news and special offers


Share This

Email

Subject

Message


Introduction
  • The CleanCut™ CNS3 autopsy system incorporates a saw handpiece and an extractor system which operates to the highest standards of pathogenic debris containment and filtration.
Features


Features

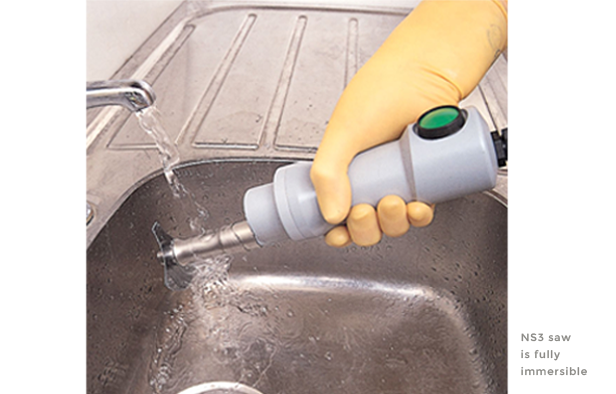

  • The safe 40 Vdc handpiece is fully immersible allowing it to be routinely scrubbed and disinfected after use
  • Fully variable speed from zero to maximum operating speed is controlled at the power supply for optimum cutting efficiency
  • Saw handpiece is rated against liquid ingress to IP67 - immersible at 1 metre
  • The extractor has five levels of filtration enabling the system to meet the highest health standards
Pneumatic


Pneumatic

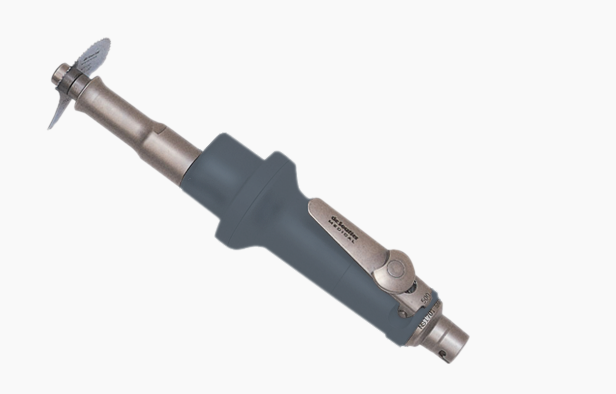

  • The CleanCut™ NS170-T air driven oscillating saw has been specifically developed to allow repeated sterilization by vacuum steam autoclaving
Oscillating speed: 17000 cpm
Air consumption: 3.3 l/s (7cfm)
Normal operating pressure: 7 bar (101 lbf/ in2)
Length: 267 mm
Weight: 0.86 kg
Sound level: 75 dB(A)
